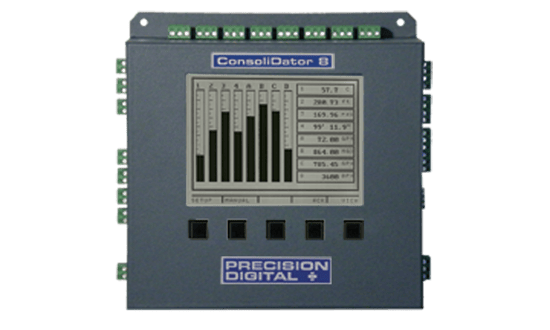

PD900 Series ConSolidator Multi-Channel Controller
Manufacturer: Precision DigitalThe ConsoliDator PD900 is an easy-to-use, multi-channel controller that accepts up to eight (8) 4-20 mA inputs, four (4) flowmeter pulse inputs, and up to eight (8) digital inputs, then displays them on a large, backlit, graphical LCD screen.
It is available in four models:
- PD940 (4 input, wall mount),
- PD941 (4 input, panel mount),
- PD980 (8 input, wall mount),
- PD981 (8 input, panel mount).
The ConsoliDator is suitable for all safe area monitoring and controlling applications such as flow, level, pressure, temperature, and vibration.
The availability of Modbus RTU serial communications makes it ideal for SCADA applications.
Features- Easy to Read Backlit LCD
- Readable in Direct Sunlight
- Bar graphs & Numeric Screens
- Easy to Set up & Configure
- Set up with Front Panel Keys
- Intuitive Menus
- Detailed Individual Screens
- Input Simulation Feature
- RS-232 Modbus® RTU
- Direct Modbus PV Inputs
- Power from AC or DC
- Wall Mount or Panel Mount
- 32-Point Linearization
- Sum & Difference Functions
- Free Programming & Data Logging Software
- A Good Match for Wireless
Specifications
Manufacturer
Enclosure, Body Material
- Steel
Environmental Protection
- NEMA 4X
- NEMA 1
- IP66
- IP10
Power Supply
- 90-264 Vac
- 8-30 Vdc
Display
- LCD Display
- 4.75” x 3.50”
Operating Temperature
- 0° to 50° C (32° to 122° F)
K-Factor
- May be Programmed from 0.00001 to 999,999 Pulses/Unit
Update Time
- 2 seconds
Humidity
- 0 to 90 % Non-Condensing
Input
- 4-20 mA
Approvals & Certifications
- UL
Communication
- RS-232
- Modbus
Mounting
- Wall Mounted
- Panel Mounted
Storage Temperature
- -40° to 60° C (-40° to 140° F)
