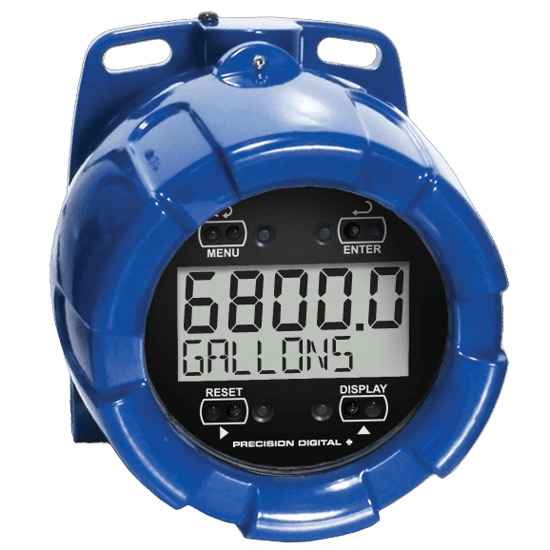

The PD6800 is a rugged, full-featured, explosion-proof loop-powered meter ideal for demanding applications in hazardous areas or in the harshest environmental conditions.

The product is CSA Certified as Explosion-Proof / Dust Ignition-Proof / Flame-Proof and ATEX & IECEx Certified as Explosion-Proof. It is available in either an aluminum or stainless steel enclosure with 3/4" or M20 conduit connections.

It will operate down to -40°C and is approved for installation in areas where the temperature gets as cold as -55°C, however the display will cease functioning.

The meter derives all of its power from the 4-20 mA loop, thus making installation a simple matter of wiring the instrument into the existing loop.

No external power is required. Programming is performed using the four SafeTouch through-glass buttons and can be done without removing the cover. In addition, the meter can be scaled with or without a calibration signal.

The backlit LCD display consists of two lines with the addition of a 20-segment bargraph on the PD6800-0L1. The main line of the display has five full digits and is used to display the process variable.

The secondary line has seven alphanumeric characters and is used for a tag, engineering units, or displaying the input in different units (for the PD6800-0L1). For instance, on the PD6800-0L1, the top line could display the height of the tank in feet and the bottom line could display the same input in gallons.

The bargraph provides a quick visual of the current state of the process variable. The backlight makes the display visible under any lighting condition and can be powered from either the 4-20 mA loop or from a separate DC power supply.

• Fully-Approved Explosion-Proof Loop-Powered Meter
• 4-20 mA Input with ±0.03% Accuracy
• 3.0 Volt Drop (6.0 Volt Drop with Backlight)
• Easy Field Scaling in Engineering Units without Applying an Input
• 0.7" (17.8 mm) 5 Digits Main Display
• 0.4" (10.2 mm) 7 Alphanumeric Characters Secondary Display
• Display Mountable at 0°, 90°, 180°, & 270°
• SafeTouch Through-Glass Button Programming
• HART® Protocol Transparent
• Loop or External DC-Powered Backlight Standard
• Operating Temperature Range: -40 to 75°C (-40 to 167°F)
• Installation Temperature Range: -55 to 75°C (-67 to 167°F)
• CSA Certified as Explosion-Proof / Dust Ignition-Proof / Flame-Proof
• ATEX and IECEx Certified as Explosion-Proof
• Conformal Coated PCBs for Dust and Humidity Protection
• Password Protection
• 32-Point Linearization, Square Root Extraction and Programmable Exponent Function
• Wide Viewing Angle
• Built-In Flange for Wall or Pipe Mounting
• Explosion-Proof, IP68, NEMA 4X Die-Cast Aluminum & Stainless Steel Enclosures
• Two 3/4" NPT or M20 Conduit Openings
• 2" U-Bolt Kit Available
• 3-Year Warranty
