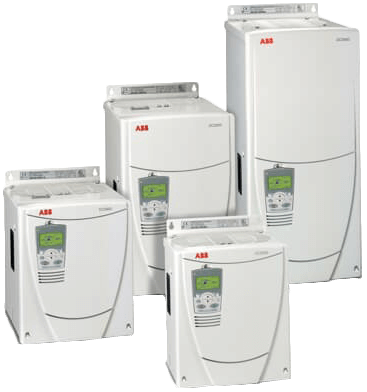

DCS800-S Industrial DC Drive
Manufacturer: ABBDCS800-S Industrial DC Drive
Manufacturer: ABBTough industrial applications, from rolling out steel to turning a cement kiln require equally tough products.
And that’s the idea that went into our DCS800 industrial DC drives.
From wire drawing to running cable cars, our DC drives give you the day-to-day reliability and performance you expect with the flexibility to meet your unique process requirements.
Our Automation Builder gives you the engineering productivity to customize drive control.
The DCS800 DC drives are also a great solution to non-motor applications like magnets, battery charging and electrolysis.
Our drives are backed by our global service and support network.
Features- Single drives, 20 to 5,200 A, 400 to 1,200 V
- Built-in three phase field exciter
- IEC 61131 programmable
- Built-in Modbus with a whole range of optional communication options
- Built-in control for shared motion, double motor operation, field reversal and classic 12-pulse installations
- Perfect for non-motor applications
Specifications
Manufacturer
Voltage
- 3-Phase 240-990 V
Deviation
- Voltage: ± 10 % Continuous, ± 15 % up to 0.5 sec
- Staticc frequency deviation 50 Hz ± 2 %, 60 Hz ± 2 %
Frequency
- Rated: 50/60 Hz
- Dynamic: 50 Hz: ± 5 Hz, 60 Hz: ± 5 Hz
Environmental Protection
- IP00
- IP21
- IP41
- IP20
- IP54
- IP 31
Certifications & Approvals
- UL
- LVD
- EMC
Cooling Air Temperature
- Permissible: 0° to 55° C
Humidity
- 5 % to 95 % Relative Humidity, no condensation
Storage Temperature
- -40° to 55° C
Transport Temperature
- -40° to 70° C
Documentation
Brochure
Catalog
Certificate
Manual
- DCS800 Firmware Manual, US pdf 4.2 MB
- DCS800 Hardware Manual pdf 3.9 MB
- DCS800 Hardware Manual US pdf 4.1 MB
- DCS800 Quick Guide pdf 8.5 MB
- DCS800 Quick Guide pdf 14.3 MB
- DCS800 Quick Start Guide, US pdf 10.0 MB
- DCS800 Quick Start Guide, US pdf 10.0 MB
- DCS800 Quick Start Guide, US pdf 518 KB
- DCS800 replaces DCS500(B) pdf 147 KB
- DCS800 Service Manual, US pdf 13.6 MB
- DCS800 Technical Guide - Firmware Download, US pdf 16 KB
- DCS800-EP 230V Conversion Kit Instruction, US pdf 695 KB
- DCS800-EP Installation and Start-Up Manual, US pdf 4.4 MB
- DCS800-EP Replacement Guide for Reliance FlexPak 3000, US pdf 1.6 MB
- DCS800-EP User Manual, US pdf 2.8 MB
- Safety Instruction pdf 357 KB
- Configuration instructions NDBU-85/95 for DW pdf 109 KB
- DCS800 Hardware Manual, US pdf 4.1 MB
