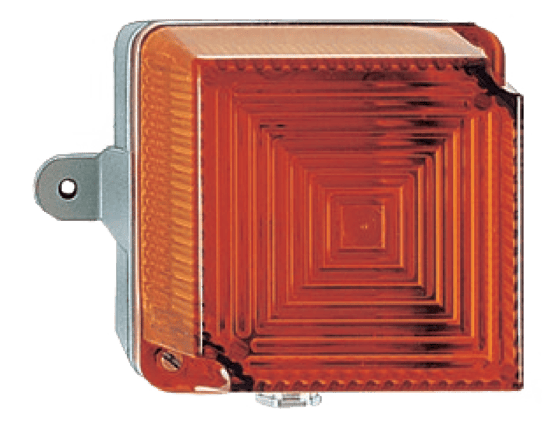

Explosion-Proof Strobe Light BDK22 for Zone 22

Manufacturer: EATON | FHF

Explosion-Proof Strobe Light BDK22 for Zone 22

Manufacturer: EATON | FHF
In especially noisy surroundings it is often necessary to use optical signals for warning and indicating purposes.

The BDK 22 Strobe Light emits clearly visible signals. The sturdy housing conforms with protection class IP 54 and allows for indoor and outdoor applications. The strobe light is available with different dome colours.

The modern electronics are mounted on a printed circuit board made of glass fiber reinforced epoxy resin. A powerful electronic flash tube highly efficiently transforms the electrical energy stored in the flash capacitor into light flashes. The weather-proof coated aluminum die-cast housing is covered by a ribbed dome made of impact-resistant Plexiglas. The strobe light is equipped with a M20 cable gland for line diameters of 8-12 mm.
Features
  • Protection class IP 54
  • Compensation valve prevents condensation water
  • Flash energy: 5 Joule
  • CE II 3 D T85 ºC IP 54 -20 ºC ≤ Ta ≤ +50 ºC

Specifications

Manufacturer

Protection type

  • CE II 3 D T85 ºC IP 54 -20 ºC ≤ Ta ≤ +50 ºC

Housing

  • Seawater-resistant aluminium, surface with weatherproof varnish

Colour

  • Light grey

Cap

  • Plexiglas

Cap colour

  • Red, amber (other colours available on request)

Ingress protection

  • IP 54 according to EN 60529

Protection class

  • I

Cable glands

  • 1x M20 for line diameters of 8-12 mm (second cable gland retrofittable)

Connection terminals

  • Terminal capacity: 2.5 mm² single-wire 1.5 mm² fine-wire

Flash energy

  • 5 joule

Flash frequency

  • 60/min

Operating conditions

  • Indoors or outdoors under protective roof

Operating position

  • Any (preferably with cable glands facing downwards)

Operating mode

  • Continuous operation

Temperature range

  • Operation -20 °C to +50 °C
  • Storage -30 °C to +70 °C

Weight

  • Approx. 0.7 kg
