ST40 HD IP Series - UL Range PTZ Camera Station
Manufacturer: EATON | OxalisST40 HD IP Series - UL Range PTZ Camera Station

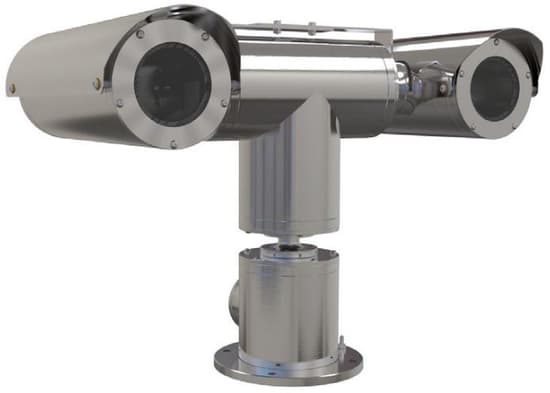

Manufacturer: EATON | OxalisThe Oxalis ST40 is a twin PTZ camera station with the addition of a high efficiency automated integral LED illuminator for use in onshore, offshore, marine and heavy industrial environments.
The camera housings are designed specifically for the Americas markets or where UL ordinary location standards have been specified.
The base unit carries dual NPT cable entries with easy access for cable termination during installation as standard, maximising compatibility and ease of use with existing installations.
Our camera stations are designed and manufactured for longevity in harsh environments, require minimal maintenance and are fully certified by UL to UL standards.
Features- Electro-polished 316L stainless steel on all welded assemblies
- Camera station window in toughened glass
- Pole or wall mounting options
- NPT entries as standard
- Various camera module options
- Options also available for IP, analogue, hybrid, IP over Coax and direct fibre out
- Supply voltage options (24 VAC, 110 or 230 VAC, 50/60 Hz)
- -58° to +158° F operating temperature
- IP66/67
Specifications
Manufacturer
Pan Speed (Maximum)
- 45° Per Second
Tilt Speed (Maximum)
- 24° Per Second
Rotation
- Continuous Pan or 350° Rotation (± 175° From Straight Ahead)
Certifications and Approvals
- UL
Environmental Protection
- IP66/67
Supply Voltage
- 24 Vac, 110 or 230 Vac, 50/60 Hz
Power Consumption
- 100 W Max. (158 W with Low Temperature Operation)
Electrical Connections
- Terminal Block for Power, Data and Video Specific to Camera Configuration
Cable Entry
- 2 x 3/4” NPT Located in Base
Body Material
- Electro-Polished 316L Stainless Steel on All Welded Assemblies
Material of Construction
- Sun Shield: Standard 316L Stainless Steel Mirror Finish
- Fixings: A4 Stainless Steel
Operating Temperature
- -58° to +158° F
Weight (lb)
- Up to 95 lb
- Onshore
- Offshore
- Marine
- Heavy Industrial
