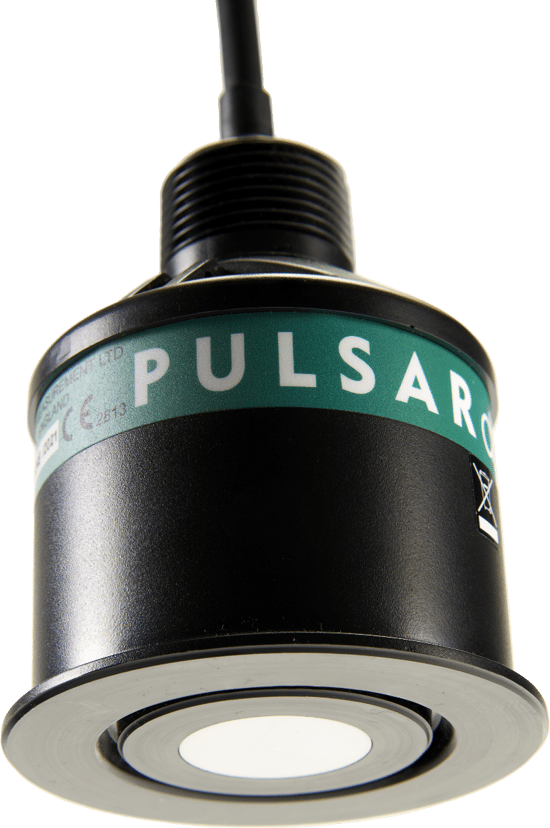

dB Ultrasonic Transducer

Manufacturer: Pulsar Measurement

dB Ultrasonic Transducer

Manufacturer: Pulsar Measurement
The dB Transducer series from Pulsar Measurement is a range of level sensors for wastewater and industrial environments.

Ranging from 3 m (9.8 ft) to 50 m (164 ft) all of our ultrasonic level sensors provide a reliable level, volume, open channel flow, pump control, and differential level measurement for both liquid and solid applications.

The dB Transducer Series is a range of non-contacting ultrasonic transducers for level, volume, and flow measurement.

Available in a variety of models and compatible with all Pulsar controllers so that you have a specific solution to suit your application requirements.

The dB ultrasonic level transducer range benefits from highly accurate and repeatable ultrasonic technology.

A low-power design produces extremely high acoustic power to give exceptionally high results in a wide variety of challenging applications ranging from the wastewater to the industrial market sectors.

The non-contacting design of the dB ultrasonic level sensors means they can be fitted with zero interruption to service, and there's no time-consuming maintenance needed, providing highly accurate non-contacting level measurement.

The ultrasonic level sensor range from Pulsar Measurement is available with a variety of different options, including submergence shields, PVDF versions for sensors mounted in hazardous locations, and many more!

All dB transducers are retrofittable with the entire Pulsar Measurement controller range, so when the needs of your measurement change, your system won't have to.
Features
  • ATEX Zone 1 & 2 Approval as standard
  • Integral temperature compensation
  • Narrow Beam Angles
  • Standard 2 or 3 core screened cable extensions to 1,000 m (3,280.8 ft)
  • DATEM (Digital Adaptive Tracking of Echo Movement) echo processing technology
  • FM/FMc Approval
  • Optional Intrinsic Safety

Specifications

Manufacturer

Operating Temperature

  • Standard: -40° to +90° C (-40° to +194° F)
  • Hazardous Area: -40° to +75° C (-40° to +167° F)

Enclosure Protection

  • IP68/NEMA 6P

Certifications & Approvals

  • CE
  • ATEX
  • FM/FMc

Accuracy

  • 0.25% or 6 mm (0.2 in) Whichever Is Greater

Resolution

  • 0.01% or 2 mm (0.1 in) Whichever Is Greater

Sensor Body Material

  • Valox 357 U and Syntactic Foam Face

Maximum Separation

  • 500 m (1,640.4 ft)

Mounting Connection

  • BSP or 1 in NPT
