PS500 Gas Detection Solution

Manufacturer: Teledyne | Oldham

PS500 Gas Detection Solution

Manufacturer: Teledyne | Oldham

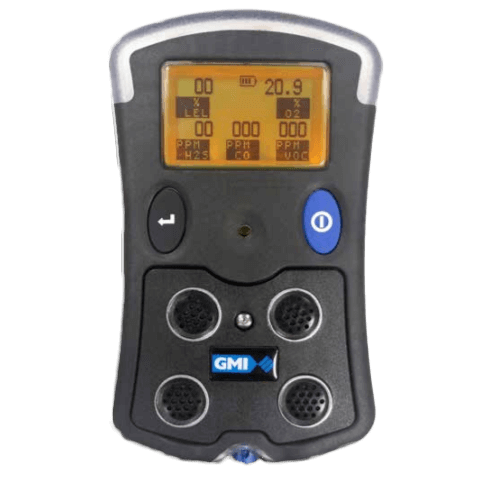

The PS500 can be tailored to detect up to five gases with its toxic and catalytic sensors, photo ionisation detectors, and infrared capabilities.

“Plug and Play” option allows the customer to “plug in” a new board with a different gas range.

The PS500 is particularly useful in noisy environments, featuring a very loud (95 dBA) penetrating and distinctive audible alarm together with high visibility large area visual alarm.

Pump, diffusion or both together, allowing pumped sample for pre-entry checking and diffusion in confined space working, thus maximizing battery life.

A robust, moulded, rubberised casing guaranteeing Hi-Impact resistance, the PS500 can be used in the most demanding industrial environments.
Features
  • Over 15 plug-and-play smart sensors to choose from
  • Wide range of VOC’s with 2 different PID sensors
  • Flexible configuration to suit your specification
  • Piercing 95 dB audible plus 360° high-visibility light bar
  • On-board datalogging for calibration certificates, data management, and event logging
  • High impact rubberised case
  • IP65
  • Low cost of ownership

Specifications

Manufacturer

Alarm

  • Low Battery Alarm
  • Low Flow Visual & Audible
  • TWA/STEL Alarms Visual & Audible
  • Up to 4 Alarms Per Toxic Gas, User Programmable
  • Visual 360° Full Light Bar, Piercing 95 Db Audible

Approvals & Certifications

  • ATEX II 2 G EEx iad IIC T3/T4
  • CE 0518
  • IEC EEx iad IIC T3/T4
  • ISO 9001: 2008, 14001: 2004
  • MED (0038/YY) - Module B & E
  • UL 913 Class I, Div. 1, Grade A, B, C, D

Battery Life

  • 12 Hours Min. with Pump

Communication

  • Data Logging

Display

  • LCD Backlight Display

Enclosure, Body Material

  • High Impact Rubberized Polycarbonate Case

Environmental Protection

  • IP65

Humidity

  • 0 to 98 % Relative Humidity, Non-Condensing

Measuring Range

  • 0 to 1,000 ppm
  • 0 to 100 % Lower Explosive Limit (LEL)
  • 0 to 25 %
  • 0 to 5 % by Volume

Measuring Time

  • T90: 5 to 185 seconds

Media

  • Gas

Power Requirement

  • 3 AA Alkaline Battery
  • NiMH Rechargeable Battery

Resolution

  • 0.05 % Volume
  • 0.1 ppm
  • 0.1%
  • 1 ppm
  • 1 % LEL

Sensor, Probe Type

  • Sensor: Catalytic Bead
  • Sensor: Electrochemical
  • Sensor: NDIR
  • Sensor: Photo Ionization Detector (PID)
