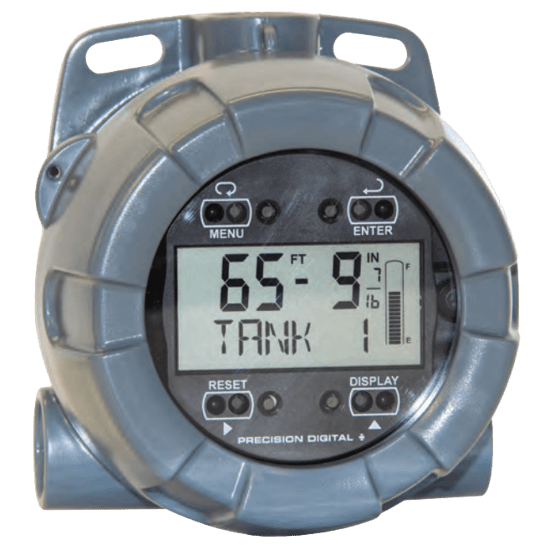

PD6701 Vantageview NEMA 4X Loop-Powered Feet & Inches Level Meter
Manufacturer: Precision DigitalPD6701 Vantageview NEMA 4X Loop-Powered Feet & Inches Level Meter
Manufacturer: Precision DigitalThe Vantageview PD6701 is one of Precision Digital's most advanced and feature-packed plastic, field-mounted, loop-powered indicators designed specifically for level applications that require a feet & inches display.
The PD6701 can indicate up to 399 feet, 11 and 15/16 (or 7/8) inches. The PD6701 is built in a NEMA 4X and IP65 rated plastic enclosure which can stand up to even the harshest environmental conditions.
It features a dual-line display that can be easily scaled in the field for any 4-20 mA analog input.
Two features that really make the PD6701 stand out are its wide viewing angle display and SafeTouch® through-window buttons.
These buttons allow the PD6701 tank-side indicator to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.
Features- Display Level in Feet & Inches
- 4-20 mA Input Loop-Powered
- Programmable 1/8 or 1/16 Inch Display
- 20-Segment Tank Level Indicator
- Lower Display for Tag, Volume, or Percent
- SafeTouch® Through-Window Button Programming
- Open Collector Alarm Output
- Password Protection
- Flanges for Wall or Pipe Mounting
- HART® Protocol Transparent
- Loop-Powered or External DC-Powered Backlight Standard
- 3.0 V Drop - 6.0 V with Backlight
- NEMA 4X, IP65 Plastic Enclosure for Safe Areas
- Operates from -40 to 75°C
Specifications
Manufacturer
Conduit Connection
- 3/4” NPT
Deadband
- 0 to 100 % of Full Scale
Display
- 0.60” High
Enclosure, Body Material
- Polycarbonate with UV Stabilizer
Environmental Protection
- IP65
- IP66
- NEMA 4X
Humidity
- 0 to 90 % Non-Condensing
Input
- 4-20 mA
Operating Temperature
- -40° to 75° C (-40° to 167° F)
Power
- 0.25 W
- 0.5 W
- 0.75 W
Storage Temperature
- -40° to 75° C (-40° to 167° F)
Supply Voltage
- 9 to 36 Vdc
Voltage Drop
- 3.0 Vdc at 20 mA with DC Powered Backlight
- 6.0 Vdc at 20 mA with Loop-Powered Backlight
