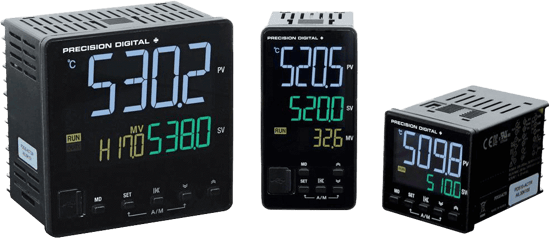

The SuperNova PD500 Series of PID Process & Temperature Controllers are a complete line of PID and on/off controllers.

Available in popular 1/4, 1/8 (V), and 1/16 DIN sizes, and with a shallow depth behind panel of only 2.5" (63 mm) they are easy to fit into almost any panel, product, or enclosure.

Voltage, current (with external resistor), and direct temperature thermocouple and RTD inputs make them an excellent choice for any control application requiring easy to change, visible set points.

This modern line of controllers shows the process variable (PV), set value (SV), and manipulated value (output level%, MV) on a striking reverse polarity LCD screen.

The front panel has indicators for RUN, COM, OUT 1 & 2, REM, MANU, TUNE, and LOCK. Indicators for units (˚C, ˚F, %, or none) can also be displayed.

• 1/16, 1/8 (V), and 1/4 DIN Auto-Tuning PID Process & Temperature Controllers
• Reverse Polarity Three-Color LCD: -1999 to 9999
• Thermocouple and RTD Inputs
• DC Voltage and Current Inputs (1-5 V, 0-5 V, 0-10 V, 0-50 mV, 0-100 mV; 4-20 mA with Resistor)
• 250 Ω Resistor(s) Included Standard
• High Accuracy Auto-Tuning PID
• High Durability IP65 Front with Hard Plastic Pushbuttons
• Large Easy to Read 14-Segment PV Display up to 1.1" (29 mm)
• Input Power 100-240 VAC
• Heating, Cooling, and Heating & Cooling Control
• Primary Control Output Options: 4-20 mA (SCR), Voltage Pulse (SSR), or Relay
• Secondary Control Output Relay Standard on All Models
• Easily Switch Between Auto and Manual Control Modes
• Up to 2 Alarm Relays & 4-20 mA Retransmit Outputs
• Remote Set Value 1-5 V Input Option (4-20 mA with External Resistor)
• Digital Input Set Value Selection
• RS-485 Serial Communications Option
• Modbus® RTU/ASCII Communications
• Mini-USB Port Standard
• FREE Programming and Monitoring Software
• Shallow Depth Case Extends Only 2.5" (63 mm) Behind Panel
• UL & C-UL Recognized Process Control Equipment, Electrical - Component
