PD650 Aluminum NEMA 4X Process Meter With 2.3" Display
Manufacturer: Precision Digital
Images are representations only.
PD650 Aluminum NEMA 4X Process Meter With 2.3" Display

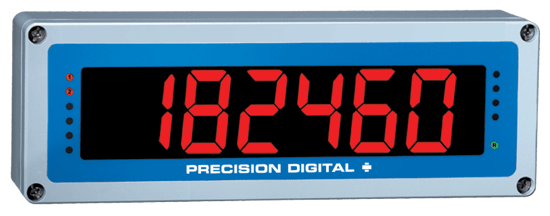

Manufacturer: Precision DigitalThe PD650 is a large display, analog input process meter with flow rate/totalizer and batch control capabilities housed in a rugged, die-cast aluminum, NEMA 4X enclosure.
It accepts the common process signals such as 4-20 mA, 0-5 VDC, 1-5 VDC and 0-10 VDC and displays these signals in engineering units on a 2.3" (58.42 mm) large, high efficiency, 4-1/2 digit LED display.
The 115/230 VAC models also provide two isolated 24 V power supplies to drive both the input and output loops.
Options include up to 4 relays for alarm or batch control and an isolated 4-20 mA transmitter output.
Features- 4-20 mA, 1-5 V, 0-5 V, 0-10 V inputs
- Large 2.3" (57.3 mm) high LED, 4-1/2 digit + extra zero display for rate
- 6 digit display for total
- Programmable exponent for weirs & flumes
- Pump alternation control
- Two 24 VDC transmitter power supplies
- 200 mA transmitter power supply option
- 2 or 4 relays & 4-20 mA output options
- 115 VAC or 230 VAC power
- Operating temperature: -20 to 65°C
- Built-in snubbers on each relay contact
- Any set point programmable for process/rate or total
Specifications
Manufacturer
Display
- 2.3" (57.3 mm) red LED, 4-1/2 digits
Enclosure
- NEMA 4X, IP66/IP67 Corrosion resistant, 0.1% max copper content
- Color: gray (RAL 7001) polyester powder paint
- Four holes for 1/2" conduit provided at base, 3 plugs provided
- Die Cast Aluminum
Mounting
- Wall Mounting
- Panel Mounting
Input
- 0-5 V
- 0-10 V
- 4-20 mA
Power Options
- AC power: 115 or 230 VAC (field select) ±10%, 50/60 Hz, 12 VA
- DC power: 22-28 VDC; 12 W maximum
Isolation
- AC powered: 1500 V
- DC powered: 500 V
Operating Temperature
- -20° to 65° C (-4° to 149° F)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Humidity
- 0 to 90 % Non-Condensing
Connections
- Removable screw terminals accept 12 to 22 AWG
Alarm Points
- Four, any combination of high or low alarms
Alarm Point Deadband
- 0-100% FS, user selectable
Alarm Status Indication
- Front panel LED
External Programming
- The Enter button functions can be controlled externally by wiring a switch across terminals EN and CM
Normal Mode Rejection
- 64 dB at 50/60 Hz
Input Impedance
- > 300 kΩ (Voltage Ranges)
- 100 ohms (Current Ranges)
