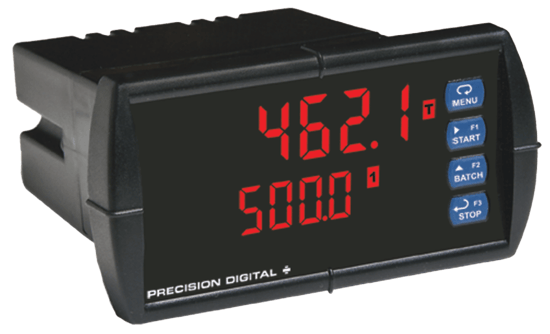

PD6310 ProVu Pulse Input Batch Controller
Manufacturer: Precision DigitalThe ProVu PD6310 is an 1/8 DIN pulse input (NPN, PNP, TTL, switch contact, sine wave, etc.) digital batch controller specifically designed for single and multi-stage batching applications.
It provides excellent but simple batch control capabilities with features such as preclose relays and automatic overrun correction for more accurate batches and intuitive front panel buttons for simple operation and menu navigation.
The preclose deactivates a specific relay on the batch controller before the batch is finished in order to allow slower fill rates and increased accuracy. Automatic overrun correction keeps the batch size accurate over time and with system wear.
With expansion module relays, up to eight-stage batching is possible; each additional stage-batching relay has an individually programmable preclose amount.
Like all ProVu meters, the PD6310 batcher includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options.
Features- Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave Inputs
- Start/Pause/Stop, Change Batch with Front Buttons
- Display Batch Total, Rate, Grand Total, Count or Preset
- Single or Multi-Stage Batch Control (Up to 8 Relays)
- Automatic Overrun Correction
- Rate in Units per Second, Minute, Hour, or Day
- Automatic or Manual Batch Control
- Low or High Flow Alarms while Batching
- 9 Digit Grand Total with Overflow Feature
- Count Up or Down with Each Batch
- Optional SunBright Display Models for Outdoor Applications
- Onboard USB and MeterView® Pro Programming Software
Specifications
Manufacturer
Display
- Upper display: 0.60" (15 mm) high
- Lower display: 0.46" (12 mm) high
- Both are 6 digits (-99999 to 999999), red LEDs
- Both are 6 digits (-99999 to 999999), red LEDs, with lead zero blanking
Display Intensity
- Eight user-selectable intensity levels
Display Update Rate
- 5/second (200 ms)
Front Panel
- IP65
- NEMA 4X
Power Options
- 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
- 12-24 VDC ± 10%, 15 W max. Powered over USB for configuration only
Programming Methods
- Four front panel buttons, digital inputs, PC and MeterView Pro software, Modbus registers
Environmental
- Storage: -40 to 85°C
- Relative humidity: 0 to 90% non-condensing
- Operating: -40° to 65° C (-40° to 150° F)
Enclosure
- 1/8 DIN, high impact plastic, UL 94V-0, color: black
Mounting
- 1/8 DIN panel cutout required: 3.622" x 1.772" (92 mm x 45 mm)
Isolation
- 4 kV Input/Output-to-Power-Line
- 500 V Input to Output or Output to P+ Supply
Dimensions (W x H x D)
- 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) (W x H x D)
Weight
- 9.5 oz. (269 g)
Approvals & Certifications
- CE
- cULs
