612-N1-24 Vdc Gas Detection Control System

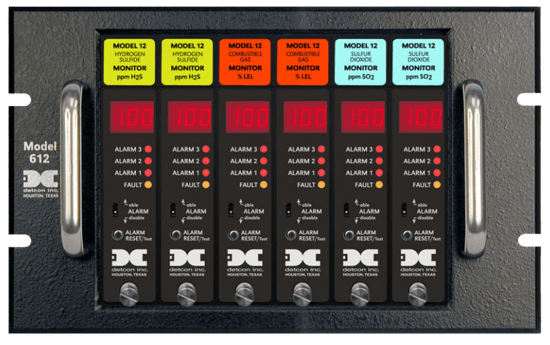

Manufacturer: Teledyne| DetconDetcon Model 612-N1-24 Vdc panel mount control enclosure, along with Model 12 digital control modules, is designed to serve as a host control system for remote mount gas detection sensor assemblies.
The single channel modular design can be configured for any combination of gases.
All control modules are plug-in front panel accessible for easy maintenance and repair.
A “blank plate” can be installed on any unused channel until that channel is needed at some future date.
Model PS-288 (288 watt) power supply can be used as a 117 Vac/24 Vdc power source.
Specifications
Manufacturer
Approvals & Certifications
- ISO 9001: 2000
Channels
- 6
Communication
- Modbus
- RS-485
Consumption
- < 5 W Per Channel (Includes Gas Sensor & Control Module)
Electrical Contacts
- Normally Closed
- Normally Open
Environmental Protection
- NEMA 1
Input Power
- 117 Vac
- 24 Vdc
Mounting
- Panel Mount
Operating Temperature
- -40° to 80° C (-40° to 176° F)
Output
- 4-20 mA DC
- Discrete or Zoned Alarm Relays (2 Alarms Plus Fault)
Power
- 288 W
