A-Series* II Panelboard
Manufacturer: ABB | GE
Images are representations only.

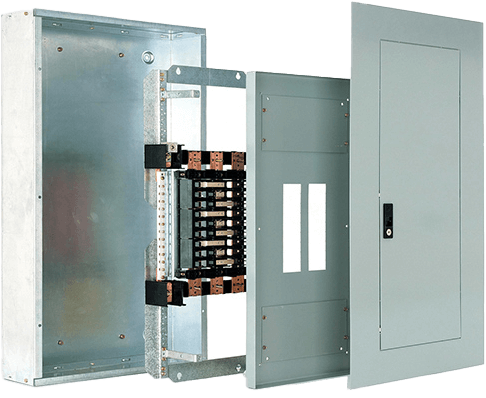

A-Series* II Panelboard
Manufacturer: ABB | GEOur A-Series design is an extremely flexible Lighting Panel with over 12,000 combinations.
The panel's comprehensive design, ease of installation and competitive price make it the obvious choice for contractors and consultants.
Instantaneous Selectivity is now available with FE, TEYD, TEYH, & TEYL breakers. Fully rated 65KAIC @ 480V solution is available utilizing AE sub-type AS panelboard. See details below.
Features- Instantaneous Selectivity available with FE, TEYD, TEYH, & TEYL breakers
- Fully rated 65KAIC @ 480V solution available utilizing AE sub-type AS panelboard
- Spectra RMS breakers which offer field installable accessories (shunt trip, aux contact, bell alarm) available as main or branch breakers
- Integral TVSS offering (optional)
- Short-circuit ratings: 100KA @ 240V ac
- NEMA 3R, 12 and 4X (painted galvanealed) enclosures available
- Standard 20" wide x 5 3/4" deep boxes with 30" wide boxes available
- Column panels available in 7 1/2" and 8 1/2" wide boxes.
- Flush or surface mounted trims with door within door and front hinge to box options available
- Main bus ratings of 125 to 800 amps available
- Concealed mounting hardware and hinges as standard
- Lighting Contactors and Molded Case switches also available as mains
- Flexibility, Reliability, Simplicity and Safety
- State of the art quotation software that provides on-site drawings and priced Bill of Materials to ensure accuracy.
- Three different levels of cycle ship times to support your needs.
Specifications
Manufacturer
Maximum Voltage
- AQ- 240 V
- AE/AS - 480Y/277 V 125/250 Vdc
- AD - 600Y/347 V
Maximum Amperage
- 800 A
Series Rated
- AQ - 200 kAIC at 240 V
- AE/AS - 100 kAIC at 480 V
- AD - 35 kAIC at 600Y/347 V
Mains
- AQ - 800 Amp Max. QB, QD, SE, SF, SG, SK, FE
- AE/AS - 800 Amp Max. TEY, TEYF, TED, SE, SF, SG, SK, FE
- AD - 800 Amp Max. THED, FB, SE, SF, SG, SK, FG
