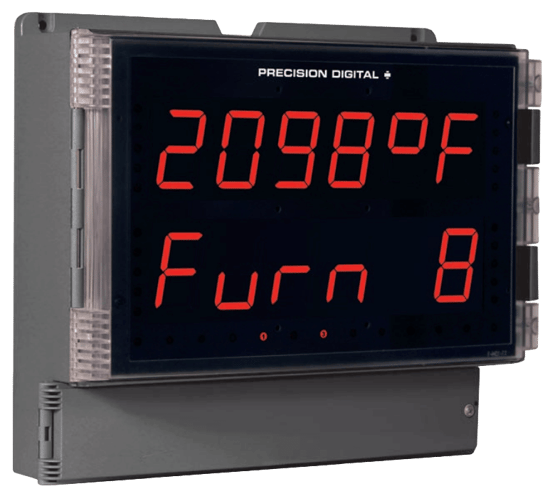

PD2-7000 Helios Temperature Meter
Manufacturer: Precision Digital
PD2-7000 Helios Temperature Meter
Manufacturer: Precision DigitalWhat sets the Helios apart from other Large Display Meters is its dual line display with super bright LEDs that can be read even in bright sunlight and up to 100 feet away.
Based on Precision Digital's popular line of ProVu® digital panel meters, the Helios can satisfy a wide variety of level, flow, temperature, pressure, & weight applications.
It is available with models that accept 4-20 mA, thermocouple, RTD, pulse, strain gauge, AC and DC volts and current, and even Modbus®.
Go with the Helios PD2-7000 when you want to display temperature on a large display meter you can see from a distance.
The PD2-7000 can accept a variety of thermocouples and RTDs and displays temperature on a six digit display.
The PD2-7000's NEMA 4X, IP65 rated field mountable enclosure, super bright LEDs, and wide operating temperature range make it perfect for outdoor applications.
Helios Features
- Large 1.80" Digits
- Dual Line Display
- Six Full Digits on Each Line
- Readable From 100 Feet Away
- Superluminous Sunlight Readable Display
- NEMA 4X, IP65 Rated Field Mountable Enclosure
- Great for Outdoor Use: -40 to 150°F (-40 to 65°C)
- Program the Meter from a PC with Onboard USB and MeterView® Pro
PD2-7000 Features
- 1° or 0.1° Resolution
- Averages Up To 10 RTD Sensors
- Automatic Cold Junction Compensation
Specifications
Manufacturer
Display
- 6 Digits per line (-99999 to 999999), with Lead Zero Blanking
- Two lines with 1.8" (46 mm) High Digits, Red LEDs
Resolution
- 1° or 0.1°
Display Intensity
- Eight user selectable intensity levels
Display Update Rate
- 5/second (200 ms)
Overrange
- Display Flashes 999999
Underrange
- Display Flashes -99999
Programming Methods
- Four Programming Buttons, digital inputs, PC and MeterView Pro Software, or Modbus registers
Noise Filter
- Programmable from 2 to 199 (0 will disable filter)
Filter Bypass
- Programmable from 0.1 to 99.9 % of Calibrated Span
Power
- Powered over USB for configuration only
- 85-265 Vac 50/60 Hz, 90-265 Vdc, 20 W max
- 12-24 Vdc ± 10 %, 15 W Max
Isolated Transmitter Power Supply
- Terminals P+ & P-: 24 VDC ± 10%
- 12-24 VDC powered models selectable for 24, 10, or 5 VDC supply (internal P+/P- switch)
- 85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC supply
Isolation
- 500 V Input-to-Output or Output-to-P+ Supply
- 4 kV Input/Output-to-Power Line
Input
- Thermocouple: J, K, T, E, R, S, B, N, C
- RTD: 100Ω Pt, 10Ω Cu, 120Ω Ni, 1000Ω Pt
Operating Temperature
- -40° to 149° F (-40° to 65° C)
Storage Temperature
- -40° to 185° F (-40° to 85° C)
Humidity
- 0 to 90 % RH, Non-Condensing
Connections
- Removable and integrated screw terminal blocks accept 12 to 22 AWG wire
Enclosure
- UL Type 4X, IP65 rated
- Polycarbonate & glass blended plastic case, color: gray
- Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, black nylon threaded hole plugs with backing nuts
Mounting
- Wall Mounting
- Pipe Mounting
Overall Dimensions (H x W x D)
- 10.63" x 12.59" x 4.77" (270 x 319.7 x 121.2 mm)
Weight
- 6.10 lb (2.76 kg)
Certifications & Approvals
- cULs
Warranty
- 3 Years Parts & Labor
Communication
- Modbus® RTU
- RS-485
