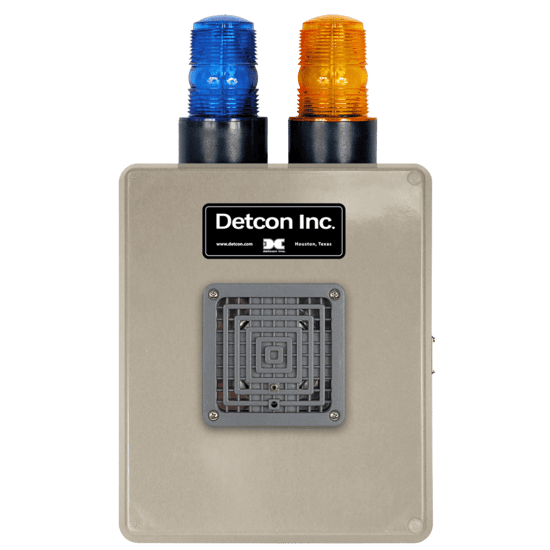

AV2-N4X Non-Hazardous Duty Alarm Station

Manufacturer: Teledyne| Detcon

AV2-N4X Non-Hazardous Duty Alarm Station

Manufacturer: Teledyne| Detcon
Detcon Model AV2-N4X audio visual alarm stations are designed for installation and use in light industrial environments.

The alarm station consists of a combination of two warning lights and a siren. Warning lights can consist of any combination of dome colors such as amber, blue, clear, green, or red. The audible alarm is capable of producing coded blasts or sustained tones.

Model AV2-N4X alarm assemblies are specifically designed for non-hazardous general-purpose locations or environments where a very bright visual and high decibel alarm signal is required.

The high-intensity strobe lights provide 60 to 80 flashes per minute. The siren produces a noise level of 99 dbA at 10 feet.

The lights are UL listed and CSA Certified and meet Type 4X watertight, dust-tight requirements. The siren is UL listed and CSA Certified.

Specifications

Manufacturer

Alarm

  • Non-Hazardous Area Alarm Switch

Approvals & Certifications

  • CE - Light Specification
  • CSA
  • FM - Siren Specification
  • ISO 9001: 2000
  • UL

Electrical Rating

  • 0.07 A at 240 Vac - Light
  • 0.09 A at 240 Vac - Siren
  • 0.10 A at 120 Vac - Light
  • 0.18 A at 120 Vac - Siren
  • 0.22 A at 24 Vdc - Light
  • 0.25 A at 24 Vdc - Siren
  • 0.44 A at 12 Vdc - Light
  • 0.50 A at 12 Vdc - Siren

Environmental Protection

  • NEMA 4X
  • Weatherproof

Mounting

  • Panel
  • Surface

Operating Temperature

  • -35° to 65° C (-31° to 150° F) - Light

Output Noise

  • 109 Db at 1 Meter
  • 99 Db at 10 feet

Pipe Connection

  • 1/2” Pipe (DN 15)

Supply Voltage

  • 12 Vdc
  • 120 Vac at 50/60 Hz
  • 24 Vdc
  • 240 Vac at 50/60 Hz

Temperature Range

  • -53° to 65° C (-65° to 150° F) - Siren
