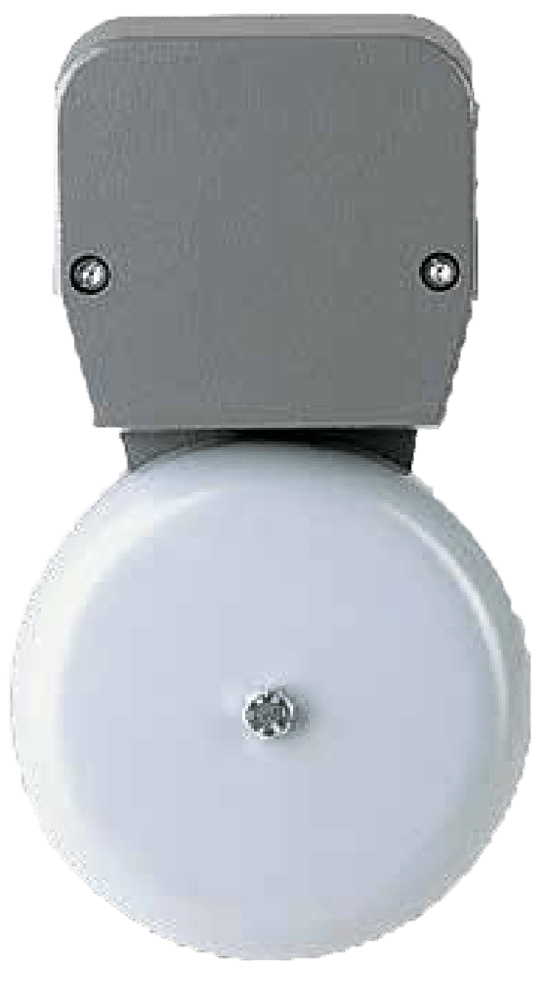

Weatherproof Signalling Bell AWS
Manufacturer: EATON | FHF
Images are representations only.
Weatherproof Signalling Bell AWS
Manufacturer: EATON | FHFThe AWS Signaling Bells are used for clear calling, reporting and warning purposes if a high-pitched bell sound shall stand out clearly against ambient noise. Different dome sizes enable an ideal signaling.
The AWS Signaling Bell with integrated call voltage relay is used for signaling purposes as secondary telephone sounder.
The AWSL Slow-stroke Bell allows a continuously adjustable stroke frequency of 30 to 90 strokes per minute.
The housing consists of corrosion-resistant, coated die-cast aluminum. The stainless steel bell dome is also protected with a corrosion-resistant coating.
Features- Multi-stroke and single-stroke signaling bell, Slow stroke signaling bell with adjustable stroke rate between 30/min. and 90/min
- Various flat domes
- Signaling bell AWS with call voltage relay
- Volume approx. 105 to 110 dB(A)
- Ingress protection IP 55
- Continuous operation
Specifications
Manufacturer
Housing
- Corrosion-resistant aluminium die cast with dark grey varnish
Bell dome
- Steel flat dome
- Light grey
Ingress protection
- IP 55 according to EN 60529
Protection class
- I
Cable glands
- AWS 2 x M20
- AWSL 1 x M20
Connection terminals
- 2.5 mm² fine-wire
- 4.0 mm² single-wire
Volume
- Approx. 105 dB(A), 1 m with 150 mm dome
- Approx. 110 dB(A), 1 m with 250 mm dome
Stroke frequency AWSL
- Adjustable between 30 and 90 strokes per minute
Operating mode
- Continuous operation
Operating conditions
- Indoors
- Outdoors
Operating position
- With striker facing downwards
Temperature range
- -25 °C to +60 °C
Weight
- 1.8 kg with 150 mm flat dome
- 3.3 kg bei 250 mm flat dome
