ACx-AP-x ABB Drive Assistant Control Panel

Manufacturer: ABB
Images are representations only.

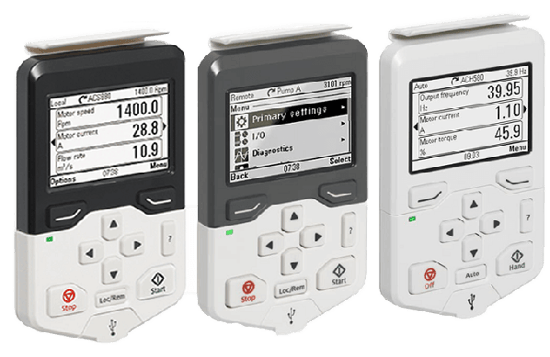

ACx-AP-x ABB Drive Assistant Control Panel

Manufacturer: ABB
Request a Quote
Favorite
Intuitive keypad with customizable texts and views for monitoring values that matter, and menu-driven programming simplify set-up and operation of even complex applications.

In your local language.

Compatible with ACH480, ACH580 and ACQ580 drives.

Specifications

Manufacturer

Connector

  • RJ-45 Female Connector
  • Type B mini USB Connector

Display

  • 240x160 Pixel resolution LCD Display

Environmental Protection

  • IP20
  • IP55
  • IP65

Material of Construction

  • Screen: Polycarbonate
  • Enclosure: PC/ABS

Altitude

  • 4,000 m (13,123 ft)

Humidity

  • 95 % Relative Humidity, Non-Condensing

Operating Temperature

  • -20° to 70° C (-4° to 158° F)

Temperature Range

  • INside Panel: -20° to 70° C (-4° to 158° F)

Certifications & Approvals

  • RoHS
  • IEC
  • Bluetooth Qualified Design

Storage / Transport Temperature

  • -40° to 80° C (-40° to 176° F)

Documentation

Manual
