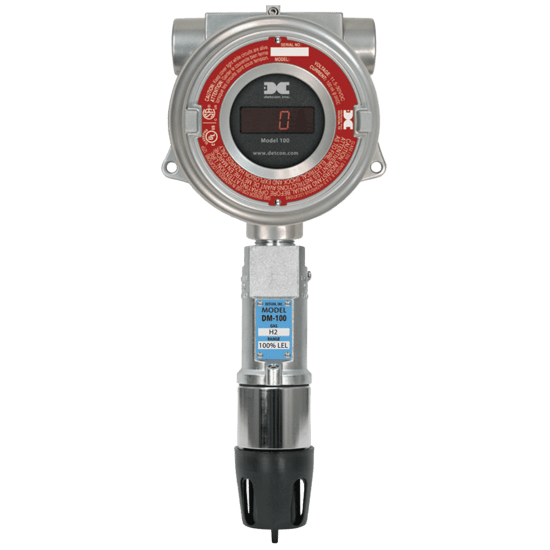

DM-101-H₂ Hydrogen Sensor
Manufacturer: Teledyne| Detcon
Images are representations only.
DM-101-H₂ Hydrogen Sensor
Manufacturer: Teledyne| DetconDetcon Model DM-101-H2 is a gas detection sensor designed to detect and monitor Hydrogen in air over the range of 0 to 100% LEL using electrochemical sensor technology.
Method of detection is by diffusion adsorption. Air and gas molecules diffuse through a porous membrane contacting an electrolyte solution which creates a change in electrical conductance between a reference and measure electrode.
This change in conductance is conditioned by internal electronic circuitry to provide a linear 4-20 mA signal proportional to the gas concentration.
Specifications
Manufacturer
Accuracy
- ± 2 % of Full Scale
Ambient Temperature Range
- -40° to 50° C (-40° to 122° F)
Approvals & Certifications
- ATEX - II 1 G Ex ia II C T4 (Tamb: -40° to 75° C) & II 2 G Ex d [ib] Ib IIC T4
- cCSAus
- CE
- CSA - Class I, Div. 1, Grade A, B, C, D (Tamb: -40° to 50° C) Class I, Zone 1, Group IIC
- ISO 9001: 2008
- NRTL - Class I, Div. 1, Grade A, B, C, D (Tamb: -40° to 75° C), Class I, Zone 1, Group IIC
- UL
Cable Length
- Maximum
Circuit Protection
- Miswiring
- Over-Voltage
Communication
- HART
- Modbus RTU
- RS-485
- Wireless
Consumption
- 20 mA - Max.
- 4 mA (0.1 W at 24 Vdc) - Normal Operation
Display
- 4-Digit LED Display with Gas Concentration & Fault
Electrical - Free Leads
- Four 18 Gauge, 5.5" (14 cm) Long Wire Leads
Electrical Connectors
- 14 AWG (2.5 mm²)
- 2-Wire Twisted-Pair Shielded Cable
- Junction Box
Enclosure, Body Material
- 316 Stainless Steel
- Aluminum
Environmental Protection
- IP66
- NEMA 4X
- NEMA 7
- Weatherproof
Humidity
- 5 to 100 % RH (Intermittent)
- 5 to 95 % RH, Non-Condensing (Continuous)
Input Power
- 10-28 Vdc
Measuring Range
- 0 to 100 % Lower Explosive Limit (LEL)
Mounting
- 5.5" (140 mm) Mounting Holes Center to Center
NPT Connection
- 3/4" NPT Male
Operating Pressure
- Atmospheric ± 10 %
Operating Temperature
- -40° to 40° C (-40° to 104° F)
Output
- 1.2 mA - All Fault Diagnostics (without Display)
- 22 mA - Over-Range Condition
- 3 mA - All Fault Diagnostics (with Display)
- 4-20 mA - 0 to 100 % of Full Scale
- Linear 4-20 mA DC (750 ohms, Max.
Repeatability
- ± 2 % of Full Scale
Response Time
- < 60 seconds for T90
RFI/EMI Protection
- Complies with EN 61362
Sensor, Probe Connection
- 2-Wire
Sensor, Probe Type
- 3-Electrode Electrochemical Cell
- Continuous Diffusion / Absorption
- Plug-In Field Replaceable Typical
Span Effect
- < 2 % Signal Loss Per Month - Span Drift
Storage Temperature
- -35° to 55° C (-31° to 131° F)
- Chemical Plants
- Food & Beverage
- Oil & Gas Applications
- Pulp & Paper
- Refineries
- Steel Mills
- Utilities
- Wastewater Treatment Plants
