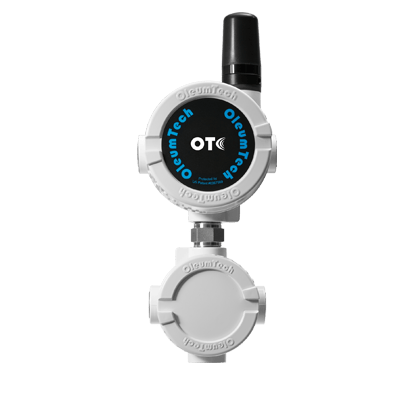

Wireless Analog Pressure Transmitter (JP4)
Manufacturer: OleumTech
Images are representations only.
The OleumTech® OTC Wireless Analog Transmitter is designed for monitoring and powering up to four analog devices such as 1-5 V pressure transducers.
The self-contained, battery-powered analog transmitter delivers unrivaled performance, reliability, and accuracy, and is made to thrive under extreme outdoor conditions.
This wireless instrument provides up to 9.5 Vdc to each analog input source.
The SM-JP4 transmitter is powered by a replaceable battery pack that provides up to a 10-year life.
The field-proven wireless sensor node communicates with an assigned wireless gateway within the OTC Wireless Sensor and I/O Network creating a highly scalable network, accommodating virtually any I/O requirement.
The OleumTech Wireless Transmitter is certified for use in Class I, Division 1 (Zone 0) hazardous locations.
It is intrinsically safe, designed not to cause a spark, and can be serviced without being removed from a process.
Features- 4 analog inputs (0-5 Vdc, 24-bit ADC)
- Up to a 10-year battery life
- Self-contained, rugged design
- Installs in minutes
- IP66, -40 °C to 70 °C (-40 ˚F to 158 ˚F)
- 900 MHz / 915 MHz / 2.4 GHz / 868 MHz
- Secure AES encryption
- Class I, Division 1 (Zone 0)
- Intrinsically Safe
Specifications
Manufacturer
Device Functionality
- Wireless Transmitter with Analog Inputs
Configuration
- Standard RS-232 Serial and BreeZ Software for PC
Inputs
- 4 Analog Inputs (0-5 Volt), 24-bit ADC
Wireless Communications
- Radio Band: ISM Band (License-Free)
- 900 MHz / 915 MHz: FHSS, FSK, AES Encryption 256-bit (900 MHz), 128-bit (915 MHz)
- 2.4 GHz: DSSS, AES Encryption 128-bit
- 868 MHz: LBT-AFA, AES Encryption 128-bit
Certifications & Approvals
- FCC Part 15 (USA), IC ICES-003 (Canada), ACMA (Australia)
- AS/NZS CISPR 32 (Australia), EN 55032 & EN 55024 (EU)
- Class I, Div. 1, Groups A, B, C, D T3C, Ex ia IIC T3
- Class I, Zone 0, AEx ia IIC T3
- ATEX: Sira 13ATEX2142X, Ex ia IIC T3 Ga, II 1 G
- IECEx: SIR 13.0054X, Ex ia IIC T3 Ga
Enclosure Casing Material
- Type 4X Aluminum
