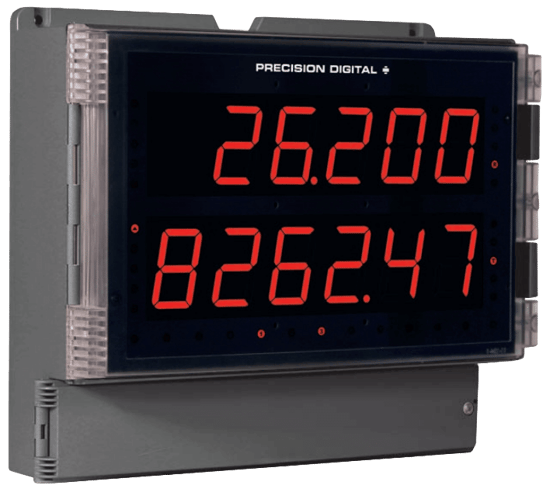

PD2-6200 Helios Analog Input Flow Rate/Totalizer
Manufacturer: Precision DigitalGo with the Helios PD2-6200 when you want to display both flow rate and total at the same time from a pulse output flowmeter.
The PD2-6200 can display both flow rate and total in six full digits and can also be configured to display non-resettable grand total.
The PD2-6200's NEMA 4X, IP65 rated field mountable enclosure, super bright LEDs, and wide operating temperature range make it perfect for outdoor applications.
Features- Large 1.80" Digits
- Dual-Line 6-digit Display
- Readable from Up to 100' - 30 Meters Away
- Superluminous Sunlight Readable Display
- Operating Temperature Range of -40° to 65° C / -40° to 150° F
- Isolated 24 Vdc Transmitter Power Supply
- Universal 85 to 265 Vac, or 12 to 24 Vdc Input Power Models
- Onboard USB & RS-485 Serial Communications
- Modbus RTU Communication Protocol Standard
- Program the Meter from a PC with Onboard USB and MeterView Pro
Specifications
Manufacturer
Display
- Two lines with 1.8" (46 mm) High Digits, Red LEDs, 6 Digits per line (-99999 to 999999), with Lead Zero Blanking
Display Intensity
- Eight user selectable intensity levels
Display Update Rate
- 5/second (200 ms)
Overrange
- Display flashes 999999
Underrange
- Display flashes -999999
Display Assignment
- The upper and Lower displays may be assigned to rate, total, grand total, alternate (Rate/total, rate/grand total, rate/units, total/units, and grand total/units), max/min, units (Lower display only), Set Points, or Modbus Input. Additional displays are available if Parameter total is off, abd Parameter d-SCAL is on: gross, alternating gross/net, PV1, PV2, and PCT (Refer to PD6000 instruction manual).
Programming Methods
- Four SafeTouch through-glass buttons when cover is installed. Four internal pushbuttons when cover is removed
F4 Digital Input Contacts
- 3.3 Vdc on Contact. Connect Normally Open Contacts across F4 to COM.
F4 Digital Input Logic Levels
- Logic High: 3 to 5 Vdc
- Logic Low: 0 to 1.25 Vdc
Noise Filter
- Programmable from 2 to 199 (0 will disable filter)
Filter Bypass
- Programmable from 0.1 to 99.9 % of Calibrated Span
Recalibration
- All Ranges are calibrated at the factory. Recalibration is recommended at Least every 12 months
Maximum / Minimum Display
- Maximum (Peak) / min (Valley) Readings Reached by the process are stored until reset by the user or until Power to the meter is cycled.
Password
- Three Programmable passwords restrict modification of programmed settings and two prevent resetting the totals
Non-Volatile Memory
- All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost
Power Options
- 12-24 Vdc ± 10 %, 15 W max
- Powered over USB for configuration only
- 85-265 Vac 50/60 Hz, 90-265 Vdc, 20 W max
Isolated Transmitter Power Supply
- Terminals P+ & P-: 24 Vdc ± 10 %. 12-24 Vdc Powered models selectable for 24, 10, or 5 Vdc Supply (Internal P+/P- switch). 85-265 Vac models rated @ 200 mA max., 12-24 Vdc Powered models rated @ 100 mA max., @ 50 mA max. for 5 or 10 Vdc Supply.
Fuse
- Required External Fuse: UL Recognized, 5 A max., Slow Blow, up to 6 m may share one 5 A fuse.
Normal Rejection Mode
- Greater than 60 dB at 50/60 Hz
Isolation
- 4 kV Input/Output-to-Power Line, 500 V Input-to-Output or Output-to-P+ Supply
Overvoltage Category
- Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III
Environmental
- T6 Class Operating Temperature Range Ta = -40 to 60° C
- T5 Class Operating Temperature Range Ta = -40 to 65° C
Maximum Power Dissipation
- Maximum Power dissipation limited to 15.1 W
Connections
- Removable Screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external Relays, Digital I/O, and Serial communication Adapters
Enclosure
- UL Type 4X, IP65 rated. Polycarbonate & glass blended plastic Case, color: gray. Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, Black nylon threaded hole plugs with backing nuts
Wall Mounting
- Four (4) mounting holes provided for mounting meter to wall
Pipe Mounting
- Optional Pipe Mounting Kit (PDA6260) Allows for Pipe Mounting. Sold Separately
Dimensions
- 10.63" x 12.59" x 4.77" (270 mm x 319.7 mm x 121.2 mm) (H x W x D)
Weight
- 6.10 lb (2.76 kg)
UL File Number
- UL & cUL Listed. E160849, 508 Industrial Control Equipment.
Warranty
- 3 Years Parts & Labor
USB Connection
- Compatibility: USB 2.0 Standard, Compliant Connector Type: Micro-B receptacle
- Cable: USB A Male to Micro-B Cable
- Driver: Windows 98/SE, ME, 2000, Server 2003/2008, XP 32/64-bit, Vista 32/64-bit, Windows 7 32/64-bit, Windows 10 32/64-bit
- Power: USB Port
