PD6200 ProVu Analog Input Flow Rate/Totalizer

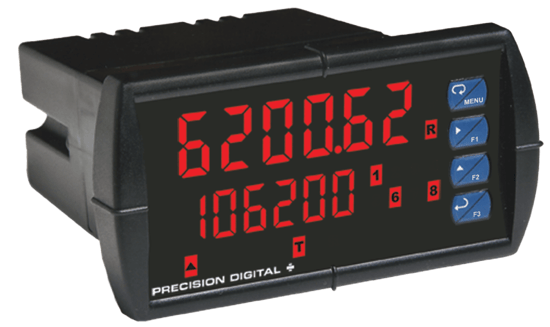

Manufacturer: Precision DigitalThe PD6200 is a member of the ProVu series of 1/8 DIN digital panel meters that is specifically designed to display flow rate and total from an analog output (4-20 mA, 0-5 V, 1-5 V, etc.) flowmeter. It displays that signal on a dual-line, 6-digit display that is available with optional Sunbright® sunlight readable LEDs.
Flow rate is typically displayed on the upper line and the cumulative total is displayed on the lower line. The total overflow feature allows up to a 9-digit total and grand total to be displayed. Like all ProVu meters, the PD6200 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options. ProVu meters can be equipped with up to four internal relays, a 4-20 mA output, and Modbus® RTU serial communications.
The PD6200 includes a 24 VDC power supply to drive the flowmeter and can be programmed via the front panel pushbuttons or free MeterView® Pro software.
Features- 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
- Isolated 24 VDC at 200 mA Transmitter Power Supply
- Open Channel Flow with Programmable Exponent
- Square Root Extraction
- 32-Point Linearization
- 5, 10 or 24 VDC Flowmeter Power Supply
- Internal Scaling or External Calibration
- Optional SunBright Display Models for Outdoor Applications
- Onboard USB and MeterView® Pro Programming Software
Specifications
Manufacturer
Display
- Upper display: 0.60" (15 mm) high
- Lower display: 0.46" (12 mm) high
- Both are 6 digits (-99999 to 999999), red LEDs
Display Intensity
- Eight user selectable intensity levels
Display Update Rate
- 5/second (200 ms)
Power
- 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
- 12-24 VDC ± 10%, 15 W max.
- Powered over USB for configuration only
Environmental Protection
- IP65
- NEMA 4X
Programming Methods
- Four front panel buttons, digital inputs, PC and MeterView Pro software, Modbus registers
Noise Filter
- Programmable from 2 to 199 (0 will disable filter)
Filter Bypass
- Programmable from 0.1 to 99.9% of calibrated span
Normal Rejection Mode
- Greater than 60 dB at 50/60 Hz
Environmental
- Operating: -40° to 65° C (-40° to 150° F)
- Storage: -40 to 85°C
- Relative humidity: 0 to 90% non-condensing
Connection
- Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters
Enclosure
- 1/8 DIN, high impact plastic, UL 94V-0, color: black
Mounting
- 1/8 DIN panel cutout required: 3.622" x 1.772" (92 mm x 45 mm). Two panel mounting bracket assemblies are provided
Dimension (W x H x D)
- 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
Approvals
- CE
- cULs
