PD6000 ProVu Process Meter
Manufacturer: Precision Digital
Images are representations only.

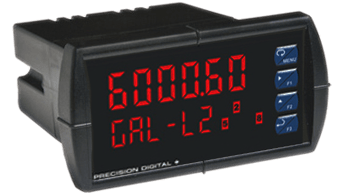

PD6000 ProVu Process Meter
Manufacturer: Precision DigitalThe PROVU meter boasts specifications and functionality that clearly make it one of the most advanced process meters available.
Its dual-line 6-digit display: 999,999, advanced signal input conditioning, function keys, Modbus RTU serial communications, and optional expansion modules are only a few of the features found on the PROVU PD6000.
Features- 1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
- 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Field Selectable Inputs
- Dual-Line 6-Digit Display, 0.6" & 0.46"
- Isolated 24 VDC at 200 mA Transmitter Power Supply
- 2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options
- No Assembly Required
- Free PC-Based MeterView Pro USB Programming Software
- Optional SunBright Display Models for Outdoor Applications
- Operating Temperature Range: -40 to 65°C / -40 to 150°F
- UL & C-UL Listed. E160849; 508 Industrial Control Equipment
- Input Power Options: 85-265 VAC or 12-24 VDC
- Display Input in Two Different Scales - Great for Level Applications
- Multi-Pump Alternation Control
- Round Horizontal Tank Formula; Just Enter Diameter & Length
- 32-Point, Square Root, or Exponential Linearization
- Programmable Display, Function Keys & Digital Input
- External 4-Relay & Digital I/O Expansion Modules
- RS-232 & RS-485 Serial Communication Options with Modbus RTU
- Light / Horn & Reset Button Accessory
- Control Station Accessory For Remote Operation of ProVu
Specifications
Manufacturer
Alarm
- Unused Alarm LEDs & Relays May be Disabled
- User May Program Any Alarm for High or Low Trip Point
Approvals & Certifications
- CE
- c-UL
Calibration
- +10 Volts: Min. Span Input 1 & 2: 0.10 Volts
- 4-20 mA: Min. Span Input 1 & Input 2: 0.15 mA
Communication
- Serial Communication Adapters
Deadband
- 0 to 100 % of Span
- User Programmable
Display
- Red LEDs
- Upper: 0.60” High, Lower: 0.46” High
Electrical Connectors
- Digital I/O
- Removable Terminal Block Accepts 12 to 22 AWG Wire
- RJ45 for External Relays
Environmental Protection
- IP65
- IP66
- NEMA 4X
Humidity
- 0 to 90 % Non-Condensing
Isolation
- 4 kV Input/Output-to-Power-Line
- 500 V Input to Output or Output to P+ Supply
Mounting
- 1/8” DIN Panel Cut-out Required. Two Panel Mounting Brackets Included.
Operating Temperature
- -40° to 65° C (-40° to 150° F)
Output
- 4-20 mA
Programming
- Cloning Using Copy Function
- Digital Inputs
- Four Front Panel Buttons
- Modbus Registers
- PC & MeterView Pro Software
Rating
- 2 or 4 SPDT Internal and/or 4 SPST External Relays
Relay Operation
- Automatic (Non-Latching)
- Latching (Requires Manual Acknowledge)
- Off (Disable Unused Relays & Enable Interlock Feature, Manual ON/OFF Control Mode)
- Pump Alternation Control (2 to 8 Relays)
- Sampling (Based on Time)
Supply Voltage
- 18-28 Vdc
- 90-265 Vdc
Switch Type
- SPDT
Inputs
- Field Selectable Analog
- 0-20 mA
- 4-20 mA
- ± 10 Vdc (0-5, 1-5, 0-10 V)
- Modbus PV (Slave)
