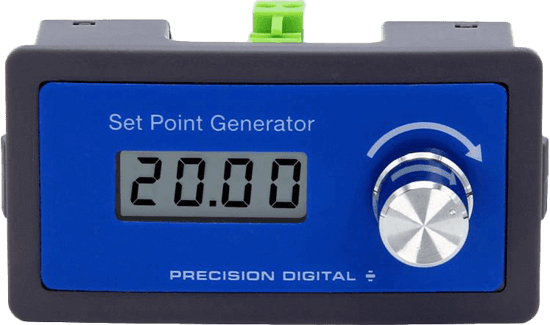

The PD420/21 set point generator and the PD460/61 valve positioner provide a convenient way to generate a 4-20 mA signal that can be used to control another device.

Both feature a backlit LCD. The PD420/21 set point generator can be programmed to display 0-100%, 4-20 mA or 3-21 mA and output either 4-20 mA or 3-21 mA.

The PD460/61 valve positioner is programmed to display a value of 0-100% relating to the 4-20 mA output. A built-in dial is provided to vary the displayed / output value. The dial may be programmed for coarse or fine adjustment.

The signal generator and valve positioner are both available as a panel mount or NEMA 4X version. In addition, NEMA 4X enclosures are provided to house up to three of the panel mount versions.

Decals are provided for %, mA, Open, and Closed for the user to apply to the faceplate. There is also a decal with a white background for the user to write a custom label.

• 4-20 mA Loop Set Point Generator
• Panel Mount or NEMA 4X
• 4-20 mA or 3-21 mA Output Ranges
• Set Point Displayed as 0-100%, 4-20 mA, or 3-21 mA
• Valve Position Displayed as 0-100%
• Built-in Dial for Changing Output
• Backlit Display
• Coarse or Fine Set Point Adjustment
• ± 0.5% Output Accuracy
• 0.01 Display Accuracy
• 15-30 VDC Power Requirement
• < 500 ohms Sampling Resistance
• Decals Provided for %, mA, Open, Closed, and Custom
