TTFM 6.1 Transit Time Flow Meter
Manufacturer: Pulsar MeasurementThe TTFM 6.1 Transit-Time Flow Meter is ideal for treated clean water, raw water, cooling water, chemicals, hydraulic oil, low-conductivity water, water/glycol solutions, and diesel and fuel oils.
The unit works by measuring the time-of-flight difference for ultrasonic sound pulses transmitted from one transducer to another. The time between transmitted and received signals is measured by the flow meter.

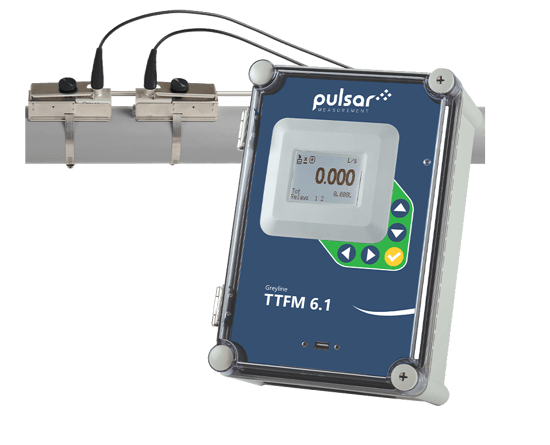

Mount the TTFM 6.1 Transit-Time Flow Meter ultrasonic transducers on the outside of a pipe and use the built-in 5-button keypad to enter the pipe material, outer diameter, wall thickness, and fluid type.
The TTFM 6.1 will display the correct transducer separation distance and mounting method.
With the TTFM 6.1 Transit-Time Flow Meter, you never need to be an expert in non-contacting flow measurement to get the best results in your application.
Features- Three easy-to-select transducer options covering 15 mm to 1,200 mm nominal pipe diameters
- Transducers work on all common pipe materials
- Standard mounting hardware makes novice installers look like experts
- Transducers simply strap to the outside of the pipe, meaning no wear and tear, and no shutdown to install
- Easy-to-contact and knowledgeable staff is here to help you before, during, and after installation
- Analog, pulse, and serial communication options to meet your specific application needs
- Standard 26 million point data logger and free Logging Software make data management and reporting fast and easy
- All transducers are approved for use in hazardous locations
Specifications
Manufacturer
Operating Parameters
- For Clean Liquids in Full Pipes with Less than 2 % Solids or Gas Bubbles
Programming
- Built-In, 5-Button Keypad with English, French, and Spanish Menu Language Selection
Electronics Enclosure
- NEMA 4X (IP66) Polycarbonate with Clear, Shatterproof Cover
Accuracy
- ± 1 % of Reading from 0.5 to 12.0 m/s (1.5 to 40 ft/s) and ± 0.0046 m/s (± 0.015 ft/s) for Velocity Below 0.46 m/s (1.5 ft/s)
- Repeatability & Linearity: ± 0.25 %
Display
- White, Backlit Matrix - Displays 5-Digit Flow Rate with Floating Decimal, 14-Digit Totalizer, Relay Status, Operating Mode, and Calibration Menu
Power Input
- 100-240 Vac 50/60 Hz, 10 VA Max.
- Optional: 9-32 Vdc, 10 W Max.
Analog Output
- Isolated 4-20 mA / 0-5 V, 1,000 ohms Load Max., Programmable Offset
Control Relays
- 2 Relays, Form 'C' Dry Contacts Rated 5 amp SPDT, Programmable Flow Alarm and/or Flow Proportional Pulse
- Optional: 4 Additional (6 Total), Rated 5 A SPDT
Data Logger
- Built-In 128 MB Data Logger with a USB Output and Windows® Software
- Capacity for Approximately 26 Million Data Points
Operating Temperature
- Sensor: -40° to 150° C (-40° to 300° F)
- Electronics: -20° to 60° C (-5° to 140° F)
Certifications & Approvals
- CE
- CSA/EN/UL 61010-1
- ATEX
- IECEx
- Clean Water
- Raw Water
- Cooling Water
- Chemicals
- Hydraulic Oil
- Low-conductivity Water
- Water/Glycol Solutions
- Diesel and Fuel Oils
