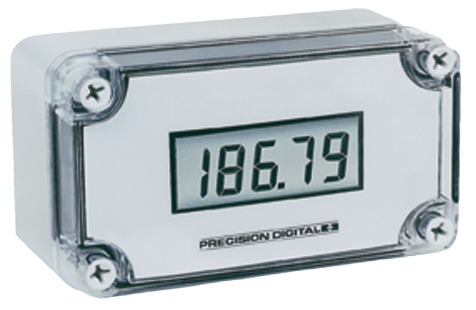

PD675 Loop-Powered NEMA 4X Nonincendive Digital Meter
Manufacturer: Precision DigitalThe PD675 meter is a 4-1/2 digit, loop-powered meter enclosed in an impact-resistant polycarbonate body, which can display numbers up to 19,999 with 1 count resolution.
Options include open collector high-level alarm output and square root extraction.
The PD675 has a wide -20 to 65°C operating temperature range, is FM approved and CSA certified, and is approved Nonincendive.
Calibration is a quick two-step process involving the adjustment of only two non-interacting potentiometers.
Features- 4-1/2 Digit 0.7" (17.8 mm) LCD, 19999
- FM Approved & CSA Certified
- Impact-resistant polycarbonate body
- Operates from -20 to 65°C
- Easy to Calibrate
Specifications
Manufacturer
Input
- 4-20 mA at 24 Vdc Max.
Accuracy
- ±0.05% FS ±2 counts
Calibration Range
- 4 mA input: -5000 to +5000
- 20 mA input: between 200 and 20000 above 4 mA input
Voltage Drop
- Max 5.2 Vdc at 20 mA
Display Update Rate
- 2.5/second
Connections
- Removable screw terminals accept 12 to 22 AWG
Environmental Protection
- IP66
- IP67
- NEMA 4X
Operating Temperature
- -20° to 65° C (-4° to 149° F)
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Relative Humidity
- 0 to 90% Non-Condensing
Display
- 0.7" (17.8 mm) LCD, 4-1/2 digits; 19999
Approvals & Certifications
- CSA
- FM
Enclosure, Body Material
- Color: gray
- Clear polycarbonate cover
- NEMA 4X, IP67. 1/2" conduit hole provided at base
- Impact-Resistant PolyCarbonate Body
Weight
- 12 oz (340 g)
