Model 12 Single Sensor Gas Detection Control Module

Manufacturer: Teledyne| Detcon

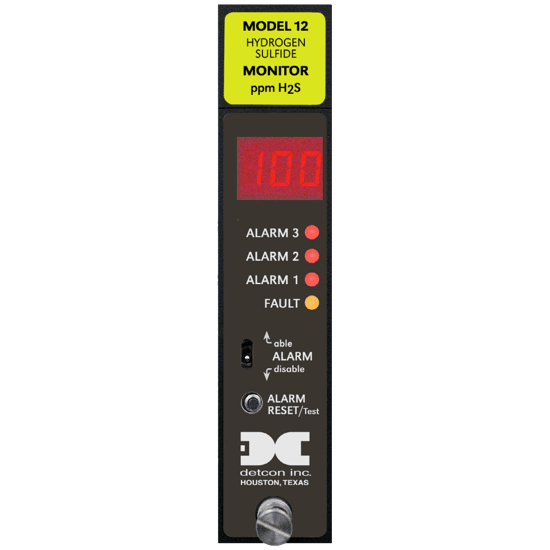

Detcon Single Sensor Gas Detection Control Module, Model 12
Images are representations only.

Model 12 Single Sensor Gas Detection Control Module

Manufacturer: Teledyne| Detcon
Request a Quote Favorite
Detcon Model 12 single channel digital control modules are designed to supervise and display the status of a single remote sensor assembly.

Modules are available for a variety of toxic and combustible gases and are compatible with a complete line of Detcon enclosures and mainframe hardware assemblies.

Specifications

Manufacturer

Accuracy

  • ± 2 % of Full Scale

Channels

  • 4 to 12-Channels

Communication

  • Modbus
  • RS-485

Consumption

  • < 3 W
  • < 5 W (Full Alarm)

Electrical Contacts

  • Normally Closed or Normally Open

Electrical Rating

  • 5 A at 30 Vdc

Environmental Protection

  • NEMA 1
  • NEMA 4X
  • NEMA 7

Indication

  • 3-Digit LED

Input

  • 24 Vdc Standard

Measuring Range

  • 0 to 100 ppm

Operating Temperature

  • -40° to 80° C (-40° to 176° F)

Output

  • 3 Alarm Relays
  • 4-20 mA DC

Relay Operation

  • 1 Fault, 3 Alarm Relays
  • Latching or Non-Lataching

Repeatability

  • ± 2 % of Full Scale
