ACS880-37 Cabinet-Built Ultra-Low Harmonic Single Drive
Manufacturer: ABB
Images are representations only.

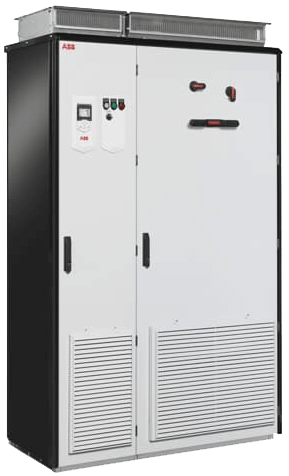

ACS880-37 Cabinet-Built Ultra-Low Harmonic Single Drive
Manufacturer: ABBOur all-compatible low harmonic drives create less harmonics compared to drives that offer standard diode supply solutions.
The compact ACS880-37 produces exceptionally low harmonic content in the drives input.
This is achieved without external filters or multi-pulse transformers.
By managing and controlling harmonics, the ACS880-37 reaches unity power factor.
The active supply unit in the drive is able to boost output voltage, which guarantees full motor voltage even when the supply voltage is below nominal.
Features- Power range 45 to 3200 kW
- Built on ABB’s common drives architecture
- IP22, IP45 and IP54 enclosure classes
- Direct torque control (DTC) as standard
- LCL line filter built-in
- Main switch and fuses
- Cabling solution include bottom and top entry and exit
- Integrated safety including STO as standard
- Supports a wide range of fieldbus protocols, I/O and encoder options
- Flexible I/O and encoder options
Specifications
Manufacturer
Voltage & Power Range
- Mains: 3-Phase, UN3 380-415 V, ± 10 %
- Mains: 3-Phase, UN5 380-500 V, ± 10 %
- Mains: 3-Phase, UN7 525-690 V, ± 10 %
- 45 to 3,200 kW
- Motor: 3-Phase output Voltage 0 to UN2 /UN3 /UN5 /UN7
Frequency
- Motor: 0 to ± 598 Hz
- Mains: 50/60 Hz ± 5 %
Efficiency
- 97 % at nominal Power
Motor Control
- Direct torque Control (DTC)
Certifications & Approvals
- UL, CSA
- TÜV
- RCM, EAC
- RoHS
- EMC
- ATEX
- LVD
- CE
Environmental Protection
- IP54
- IP42
- IP22
Storage / Transport Temperature
- -40° to 70° C
Operating Temperature
- 0° to 40° C as Standard
- 40° to 50° C with Derating of 1 %/1° C
Cooling Type
- Dry Clean Air Cooling
Altitude
- 0 to 1,000 m without derating
- 1,000 to 4,000 m without derating with derating of 1 %/ 100 m
Humidity
- 5 % to 95 % Relative Humidity, no condensation
Documentation
Brochure
Catalog
Certificate
- ACS880 with FPTC-01 (+L536) TUV NORD certificate for PTC Protection (Safe Motor Temperature, SMT) function pdf 125 KB
- ACS880 with FPTC-02 (+L537 +Q971) TUV NORD certificate for PTC Protection (Safe Motor Temperature, SMT) function pdf 128 KB
- ACS880 with FPTC-02 ATEX 2014/34/EU & MD 2006/42/EC EU DoC pdf 107 KB
- ACS880 with FPTC-02 ATEX certificate, ATEX-certified motor thermistor protection (+L537 +Q971) pdf 450 KB
- ACS880-07/-17/-37, -07LC, -17LC, -37LC, -107, -107LC and multidrives ATEX certificate, ATEX-certified motor thermal protection function +L513/+L514 +Q971 pdf 449 KB
- ACS880-x4 -04XT -x04 -xx04 -x7 -x07 -xx07 RMRS marine type approval certificate pdf 179 KB
- ACS880-x4 (frames R8i), -04XT, -04FXT, -x7(LC), -x04, -x04LC, -x07 and multidrives, EU Declaration of Conformity pdf 3.9 MB
- ACS880-x7 -x07 -xx07 ABS marine type approval certificate pdf 47 KB
- ACS880-x7 -x07 -xx07 CCS marine type approval certificate pdf 1.8 MB
- ACS880-x7 -x07 -xx07 DNV GL marine type approval certificate pdf 441 KB
- ACS880-x7 -x07 -xx07 LR marine type approval certificate pdf 128 KB
- ACS880/ACS880LC TUV NORD STO certificate pdf 1.7 MB
- ATEX Production Quality Assurance Notification, EESF 19 ATEX Q 013, ABB LV Drives Helsinki pdf 436 KB
- Declaration of Conformity, Machinery Directive 2006/42/EC, ACS880-04/-14/-34 (nxR8i), -04XT, -04FXT, -104, -07 -17, -37, -104LC, -17LC, -37LC, -107LC, multidrives pdf 3.2 MB
- Declaration of Conformity, RCM Declaration, EN61800-3:2004, ACS880-07, -17, -37 pdf 348 KB
- Declaration on Conformity, ATEX Directive, ACS880-07/-17/-37/-107/-07CLC/-17LC/-37LC/-107LC, ATEX certified motor thermal protection function, +L513/+L514 +Q971 pdf 72 KB
- EU Declaration of Conformity, ACS880, ACS580, ACS800 drive modules lifting equipment pdf 52 KB
- EU Declaration of Conformity, ACS880, ACS580, ACS800LC cabinet built drives lifting equipment pdf 62 KB
- KIWA Inspecta Certificate for ACS800, ACS880, ACS580 drive modules lifting equipment pdf 140 KB
- KIWA Inspecta Certificate for ACS800LC, ACS880, ACS880LC, ACS580 cabinet-built drives lifting equipment pdf 169 KB
- Production Quality Assurance Notification, Eurofins 19 ATEX Q025, ABB Drives Estonia pdf 435 KB
- ACS880-x7 -x07 -xx07 BV marine type approval certificate over 50kW pdf 404 KB
- EU Declaration of Conformity pdf 1.5 MB
- EU Declaration of Conformity LVD 2014/35/EU and EMCD 2014/30/EU, ACS880-07, -07LC, -07CLC, -17, -17LC, -37, -37LC pdf 1.5 MB
Manual
- ACS880 +C132 marine type-approved cabinet-built drives supplement pdf 719 KB
- ACS880 Cavitation detection control program Supplement pdf 1.5 MB
- ACS880 IGBT supply control program firmware manual pdf 6.2 MB
- ACS880 IGBT supply control program firmware manual - Drive composer version pdf 5.2 MB
- ACS880 Primary control program Firmware manual pdf 5.1 MB
- ACS880 Primary control program Firmware manual - Drive composer version pdf 5.5 MB
- ACS880-37 (160 to 3200 kW) drives hardware manual pdf 17.0 MB
- ACS880-37 drives (45...400 kW, 60...450 hp) hardware manual pdf 62.3 MB
- ATEX-certified thermal motor protection functions for cabinet-built ACS880 drives (+L513+Q971 and +L514+Q971) User's manual pdf 1.8 MB
- Drive composer start-up and maintenance PC tool user's manual pdf 20.8 MB
- Emergency stop, configurable stop category 0 or 1 (+Q978) for ACS880-07/07LC/17/17LC/37/37LC drives user's manual pdf 1.3 MB
- Emergency stop, configurable stop category 0 or 1 (option +Q979) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 1.1 MB
- Emergency stop, stop category 0 (option +Q951) for ACS880-07/07LC/17/17LC/37/37LC drives User’s manual pdf 1,012 KB
- Emergency stop, stop category 0 (option +Q963) for ACS880-07/07LC/17/17LC/37/37LC drives user's manual pdf 936 KB
- Prevention of unexpected start-up (option +Q950) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 979 KB
- Prevention of unexpected start-up (option +Q957) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 933 KB
- Safely-limited speed with the encoder interface (option +Q965) for ACS880-07/07LC/17/17LC/37/37LC drives user's manual pdf 1.2 MB
- Emergency stop, stop category 1 (option +Q964) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 985 KB
- EN ACS880-x7 Q952 UM K A4.pd Emergency stop, stop category 1 (option +Q952) for ACS880-07/07LC/17/17LC/37/37LC drives user’s manual pdf 1.0 MB
- Single drive cabinets and modules pdf 1.0 MB
