F043 Temperature Monitor
Manufacturer: Precision Digital
Images are representations only.

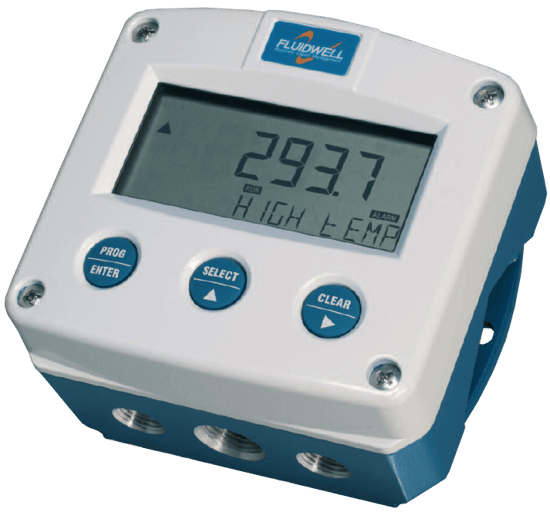

F043 Temperature Monitor
Manufacturer: Precision DigitalThe F043 is a versatile temperature indicator with continuous temperature monitoring feature. It has one low temperature and one high temperature alarm value.
If desired, an ignore (delay) function can be set up to allow for an incorrect temperature for a certain period of time.
The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive DIP-switches or trimmers.
Features- The display shows the actual temperature, alarm values, alarm messages and status
- On-screen engineering units are easily configured from a comprehensive selection
- Displays clear alarm messages
- Red flashing LED backlight in case of a temperature alarm; intensity adjustable
- Selectable on-screen engineering units: °C - °F - K
- Temperature: six large 17 mm (0.67") digits
- Temperature monitoring: two alarm values can be set: low and high temperature alarm
- Alarm values can be changed by the operator or they can be password protected
- One alarm output for high, low or both combined temperature alarms
- Intrinsically safe according ATEX, IECEx, FM and CSA C-US
- GRP, Aluminum or high grade stainless steel enclosure
- Auto backup of settings in EEPROM memory
- Easy configuration with clear alphanumerical display
- Ambient temperature: -40° to +80° C (-40° to 176° F)
Advantages
- Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type 4X). It is so rugged, a truck can even stand on it!
- Intrinsically Safe available - ATEX, IECEx, FM and CSA approval for gas and dust applications
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors
Specifications
Manufacturer
Accuracy
- Error < 0.01 mA / ± 0.05 % of Full Scale Output
Approvals & Certifications
- RoHS
- IP & NEMA
- ATEX
- CE
- CSA
- EMC
- FM
- IEC
- IECEx
Conduit Connection
- 1/2” NPT
- M12
- M16
- M20
- PG9
Enclosure
- Stainless Steel 316L Panel Mount Enclosure
- Aluminum Panel Mount Enclosure
Environmental Protection
- IP65
- IP67
- NEMA 4X
Operating Temperature
- -40° to 80° C (-40° to 176° F)
Power
- 4-20 mA, Input Loop-powered
- Sensor: 8.2-24 VDC
- 115-230 Vac
- 8-30 Vac/Vdc
Resolution
- 16-bits
Terminal Connection
- Removable Plug-In Terminal Strip
Voltage Drop
- 1 Vdc at 20 mA
- Max. 2.6 Vdc @ 20 mA (Loop Powered)
Signal Input
- PT100 - 2-, 3- or 4-Wire PRTD Sensor
- (0)4-20 mA
- For Applications Where Continuous Temperature Measurement and Monitoring Is Important Without Signal Re-transmission
- Field Mount Indicators in Safe and Hazardous Area Applications. Especially in Harsh Weather Conditions Like Rain, Snow, Sandy Deserts, Salty Atmospheres and Temperatures Between -40° to +80° C (-40° to 176° F)
